What Is Sprinkler Installation and How Does It Work?

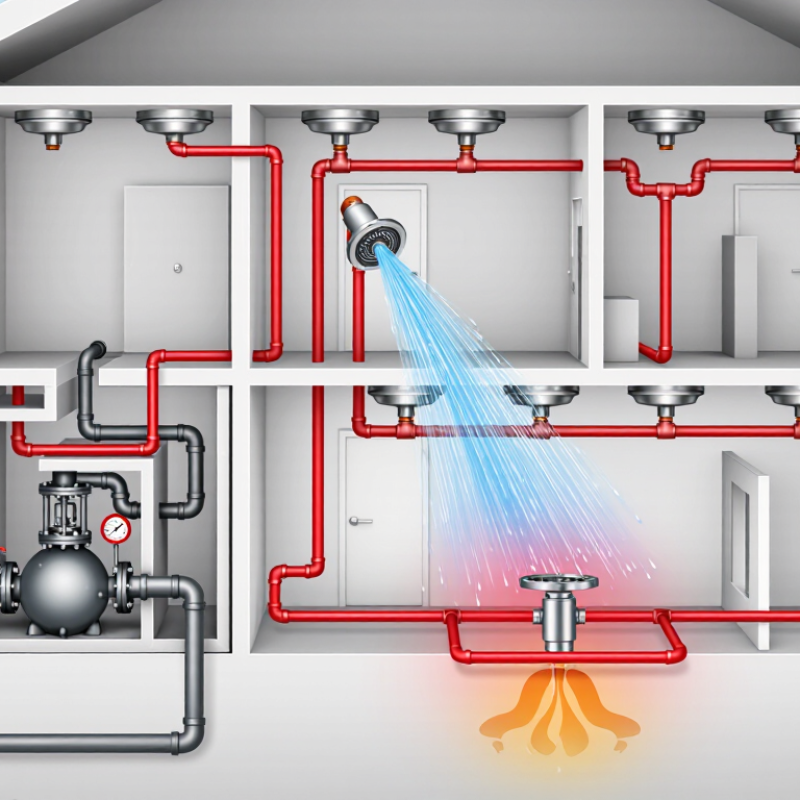

A fire sprinkler system is a network of pipes and heat-responsive sprinkler heads designed to control or suppress a fire. Sprinkler Installation connects these parts to a reliable water supply and places each head where it can work effectively. At a glance, the system seems simple. Its performance depends on careful planning, correct spacing, and suitable water pressure.

In many systems, heat activates individual sprinkler heads near a fire; every head does not normally open at once. That detail matters. A qualified fire-protection professional assesses the building’s layout, ceiling height, occupancy, and water supply before selecting equipment. Installers then position pipes and heads, connect the system, and test for leaks, pressure, and proper operation. Exact designs and requirements vary by building and location, so a general guide cannot replace a site-specific assessment.

This overview explains what installation involves, how water reaches an activated head, and why inspection and maintenance matter after the work is complete. For example, a painted-over head or blocked spray pattern can affect performance. Small issues deserve attention. Sprinklers are not a substitute for alarms, evacuation planning, or professional advice, and no system removes every fire risk. Understanding the basics helps property owners ask clearer questions, recognize the value of qualified installation, and keep expectations realistic. One point is easy to overlook: a system is only dependable when its design, installation, and ongoing care all work together.

Table of Contents [Hide]

1 What Sprinkler Installation Includes

2 How a Sprinkler System Distributes Water

3 How to Plan a Sprinkler System for a Site

4 Steps for Installing Sprinkler System Components

5 How to Test and Adjust a Sprinkler System

What Sprinkler Installation Includes

What Sprinkler Installation Includes

Sprinkler installation begins with a site assessment. The installer checks water pressure, soil type, slopes, and planting areas. A narrow lawn beside a driveway may need different coverage than a broad, level yard. These details guide the layout and help limit overspray onto paths or walls.

The system usually includes buried pipes, sprinkler heads, valves, and a controller. Pipes carry water from the supply, while valves direct it into separate zones. Each zone may serve areas with similar watering needs. Rotary heads can cover open lawns; smaller spray heads may suit garden beds. The controller sets watering times, though its schedule should change with rainfall and seasonal conditions.

Careful installation involves marking underground utilities, digging trenches, connecting components, and flushing the lines before fitting the heads. Then the installer tests each zone for leaks, weak pressure, and uneven coverage. You might notice a dry crescent near a fence; small adjustments to head direction can help. Still, a tidy plan cannot predict every change in plant growth or water pressure. I would treat the first watering schedule as a starting point, not a fixed answer. After installation, occasional checks can catch clogged nozzles or shifted heads before they leave dry patches.

What Sprinkler Installation Includes

Installation typically involves planning the layout, connecting the water supply, installing pipes and sprinkler heads, and testing the system. The chart shows one common placement reference—not a substitute for approved plans or local code requirements.

For standard spray sprinklers, NFPA 13 commonly specifies a deflector-to-ceiling distance of 1–12 inches, subject to sprinkler type, listing, adopted code edition, and approved design.

How a Sprinkler System Distributes Water

An irrigation sprinkler system carries water from a supply line through pipes to individual sprinkler heads. At the connection point, a backflow device helps prevent irrigation water from entering the household supply. A controller opens an electric valve for one zone at a time, sending water through buried lateral pipes. Water pressure lifts it through each head, where a nozzle shapes the flow into a spray or rotating stream. Then it reaches the soil.

Each zone groups heads that need similar flow and watering time. Head spacing matters: spray from one head should reach near the next, helping avoid dry strips between arcs. A rotor may cover a broad lawn, while smaller spray heads suit narrow planting beds. On a windy afternoon, even a well-planned pattern can drift. Small details matter. A clogged nozzle, tilted head, or low-pressure line can leave a visible patch of thirsty grass.

During installation, pipe routes and head positions are planned around paths, trees, and changes in elevation. Installers can check pressure and run each zone to spot leaks or uneven coverage before covering trenches. Soil also changes how water behaves; clay may absorb it slowly, while sandy ground drains faster. No layout is perfectly even, so observing the system after use can reveal adjustments it still needs.

What Is Sprinkler Installation and How Does It Work? — How a Sprinkler System Distributes Water

System Stage or Component	What It Does	How Water Moves Through It	Installation Considerations	Typical Real-World Detail
Water supply and backflow prevention	Connects the irrigation system to an approved water source and helps prevent irrigation water from flowing back into the potable supply.	Water enters from a municipal connection or another permitted source, then passes through the required backflow-prevention device.	The device type and installation requirements depend on local plumbing codes, the water source, and site conditions.	Backflow protection is commonly required for systems connected to drinking-water supplies; local authorities determine the applicable device and testing rules.
Mainline and shutoff valve	Carries pressurized water from the supply connection toward the zone valves and allows the system to be isolated for service.	The mainline remains pressurized while the supply is on; a shutoff valve can stop flow to the irrigation system.	Pipe material, diameter, burial depth, and connection details should suit the available flow, pressure, soil, and local requirements.	Residential systems often use buried PVC or polyethylene pipe, but the appropriate material and size vary by design and jurisdiction.
Controller and zone valves	The controller schedules watering, while each electrically operated valve opens or closes a separate irrigation zone.	When a zone is scheduled, the controller signals its valve to open. Water then flows into that zone’s lateral pipes.	Zones are usually planned around similar plant needs, sun exposure, soil, and sprinkler type. Electrical connections should be protected for outdoor use.	Many home systems operate one zone at a time so the combined demand stays within the supply’s available flow.
Filters and pressure regulation	Filters help limit debris reaching small passages; pressure-regulating components help keep operating pressure within the range suited to the equipment.	Depending on the design, water is filtered or regulated before it reaches emitters or sprinkler heads.	Use filtration where the water source or emitter specifications call for it. Select pressure controls based on the head or nozzle manufacturer’s requirements.	Operating pressure is product-specific: many spray heads are designed for roughly 20–30 psi, while many rotors use higher pressure. Check the product specifications.
Lateral pipes	Distribute water from a zone valve to the sprinkler heads or other emitters within that zone.	Once the zone valve opens, water travels through the lateral pipe network and rises through connections to the heads.	Pipe routing, size, and head spacing should account for the zone’s flow demand, friction loss, terrain, and obstacles.	Head spacing is based on the selected product’s throw and the site layout; overlapping coverage is commonly used to reduce dry gaps.
Sprinkler heads and nozzles	Convert pressurized water into a spray or rotating stream that applies water to the planted area.	Water exits through a nozzle. Spray heads distribute a fixed pattern; rotor heads rotate a stream across a set arc or full circle.	Choose head type, nozzle, arc, and spacing to match the area shape and plant needs. Avoid spraying walls, paths, and other unwanted surfaces.	Spray-head and rotor flow rates differ by nozzle, pressure, and arc, so the system should be designed using the manufacturer’s flow data.
Watering cycle	Applies water at scheduled times and durations, with separate programs or zones used where landscape needs differ.	The controller opens a zone valve for its programmed run time; when the cycle ends, the valve closes and the next scheduled zone may begin.	Adjust schedules for rainfall, season, soil type, slope, and plant requirements. Shorter cycles can help reduce runoff on slopes or compacted soils.	There is no single run time that suits every yard; application rate and local watering guidance should inform scheduling.
Inspection and maintenance	Helps keep coverage even and identifies leaks, clogged nozzles, damaged heads, or incorrect settings.	During operation, water patterns can be observed to check whether each head sprays correctly and whether coverage overlaps as intended.	Inspect after installation and periodically thereafter. Clean or replace clogged nozzles and adjust misaligned heads as needed.	Visible pooling, misting, dry patches, or water spraying onto hard surfaces can indicate a maintenance issue or a need to adjust the design.

Note: Figures and equipment details are typical examples, not universal specifications. Final design and installation should follow product instructions and applicable local codes.

How to Plan a Sprinkler System for a Site

Planning a sprinkler system starts with observing the site, not choosing equipment. Walk the property after rain or watering. Mark buildings, paved areas, planting beds, mature trees, and narrow strips of lawn. Note slopes and places where water pools. These details reveal where spray may be wasted or runoff may begin. A rough sketch helps. It need not be perfect.

Next, check the available water supply. Measure flow and pressure at the connection point; static pressure alone can mislead. Compare the results with expected demand, then divide the landscape into zones with similar sun, soil, and plant needs. A sunny lawn may need a different schedule from shaded beds. Place sprinkler heads using their coverage data, allowing overlap to reduce dry gaps. Wind and nearby walls can still change the spray pattern.

Plan pipe routes and controller locations before digging. Keep valves accessible, avoid unnecessary bends, and identify buried utilities before excavation. Where freezing occurs, plan how to shut down and drain the system. Test each zone after installation, watching for leaks, misting, runoff, and overspray onto paths. A drawing can look precise and still miss a low spot; check the actual flow before calling the layout finished. Revisit the settings as plants grow or site conditions change.

Steps for Installing Sprinkler System Components

Before digging, sketch the lawn, planting beds, slopes, and paved areas. Divide the yard into watering zones, grouping plants with similar water needs. Measure available water pressure and flow; a simple pressure gauge and timed bucket test can reveal limits. The U.S. EPA WaterSense program estimates that landscape irrigation uses nearly 9 billion gallons of water daily in the United States. It also notes that as much as half may be wasted through overwatering or inefficient systems. That is a strong reason to plan coverage carefully, not simply add more sprinkler heads.

Mark pipe routes and head locations, keeping spray off walls and walkways. Dig trenches deep enough to protect pipes from routine yard work. Install the backflow protection, main line, valve manifold, zone pipes, and sprinkler heads in sequence. Keep fittings clean, and use compatible pipe and connectors. Flush each line before attaching its heads; grit can clog small nozzles. Then connect the controller and assign each valve to a zone. Turn on one zone at a time, checking for leaks, weak flow, and uneven spray. Small detail, big difference. Adjust head direction and arc until water reaches the intended area. The first layout may still miss a dry patch or overspray a path; observe it during a full cycle, then make measured adjustments.

How to Test and Adjust a Sprinkler System

Testing a sprinkler system is easiest when each zone runs separately. Turn on one zone and walk its full path. Watch for clogged nozzles, tilted heads, leaks, and water spraying onto pavement. A small flag or marker can help identify dry patches without relying on memory. Watch closely.

Check whether each spray pattern reaches the next area without flooding it. For many spray heads, the nozzle direction and range can be adjusted by hand or with a simple tool. Rotor heads may need a different adjustment method, so check the system’s instructions before turning anything. Make small changes, then run the zone again. A quarter-turn can redirect water farther than expected.

Pay attention to pressure, too. Weak spray across several heads may point to a supply issue or leak, not a nozzle problem. Clear visible debris carefully, and replace damaged parts with compatible ones. Test early in the morning, when wind and evaporation are lower. It is easy to overcorrect a dry corner, especially after one test; soil and plant needs vary, so check the area again after watering. A system can look even from the sidewalk and still miss roots beneath dense shrubs.
